Stainless Steel Stockpot Manufacturer China
A stockpot is the tall, straight-sided pot a kitchen reaches for when the batch is big: soups, stocks, stews, sauces and pasta water, cooked in volume. Bonray makes stainless steel stockpots in China for wholesalers, supermarket chains and commercial kitchen suppliers — tri-ply composite bottoms for even heat, sizes from 8 qt to 226 L, custom sizes, materials and logos. Whether you are a distributor lining up a retail line, a hospitality wholesaler serving hotels and restaurants, or a global brand ordering a private-label range, the pot is made to your size and specification in Jiangmen, China.
12 Years
Manufacturing Experience
100+ Brands
Served Worldwide
500 pcs
Standard MOQ per Product
4–6 Weeks
Lead Time
What a stainless steel stockpot is for
A stockpot is built for volume. Its tall, straight sides hold a large amount of liquid without taking up a wide footprint on the hob, and the straight body maximises cooking capacity for soups, stews, broths and bulk cooking. Bonray’s stockpots are made for both home and professional kitchens, catering services and food production facilities — anywhere a large batch has to come out evenly cooked, pot after pot. Two things decide whether a stockpot earns its place in a commercial kitchen: the bottom and the size. The bottom decides whether heat spreads evenly or scorches in the middle. The size decides whether the batch fits. Both are covered below.
Even heat, on every cooktop
Tri-ply composite bottom — 430 stainless steel, aluminum core, 430 — spreads heat across the whole base, so large batches heat evenly instead of scorching in the middle. Works on gas, electric, ceramic and induction.
Sizes from 8 qt to 226 L
Retail quarts 8, 12, 16 and 20 qt; commercial metric sizes Φ250×H250 mm (12.27 L) to Φ600×H800 mm (226.08 L), plus a shallow-pot version. Custom sizes on request.
Custom sizes, materials and logos
Body in stainless steel 304 for premium lines, or 201 for budget-conscious markets. Riveted wire handles, stainless steel lids, and logos by stamping, laser engraving, etching or embossing.
Documents and compliance
Ask for the material certificate and the food-contact evidence for your market. See the Cookware Certification Checklist.
Stockpot sizes: 8 qt to 226 L
Size is the first decision, because it decides what the pot can cook and who it serves. The table below covers the retail range in US quarts; the second table covers the commercial range in metric diameters, from the composite-bottom stockpot series.
| Size | Capacity |
|---|---|
| 8 qt | 7.6 L |
| 12 qt | 11.4 L |
| 16 qt | 15.1 L |
| 20 qt | 18.9 L |
Custom sizes available on request.
| Diameter × Height | Capacity | Composite bottom |
|---|---|---|
| Φ250×H250 mm | 12.27 L | 3.9 mm |
| Φ280×H280 mm | 17.23 L | 3.9 mm |
| Φ300×H300 mm | 21.20 L | 3.9 mm |
| Φ320×H320 mm | 25.72 L | 4.1 mm |
| Φ350×H350 mm | 33.66 L | 4.1 mm |
| Φ360×H360 mm | 36.62 L | 4.1 mm |
| Φ400×H400 mm | 50.24 L | 4.1 mm |
| Φ450×H450 mm | 71.53 L | 4.1 mm |
| Φ500×H500 mm | 98.13 L | 4.1 mm |
| Φ500×H600 mm | 117.75 L | 4.1 mm |
| Φ550×H550 mm | 130.60 L | 5.2 mm |
| Φ600×H600 mm | 169.56 L | 5.2 mm |
| Φ600×H700 mm | 197.82 L | 5.2 mm |
| Φ600×H800 mm | 226.08 L | 5.2 mm |
The shallow-pot version of the same series runs Φ250×H100 mm (4.91 L) to Φ600×H400 mm (113.04 L) in 12 sizes. As a rule of thumb: 8–12 qt suits small restaurants and home-use retailers; 16–20 qt suits medium commercial kitchens; 32 qt and above suits hotels, catering services and bulk food preparation. Balancing your inventory with a range of sizes serves more of your market than stocking one size alone.
Tri-ply composite bottom: how the base is built
The bottom is where a stockpot earns its price. A single layer of stainless steel heats unevenly — hot in the middle over the burner, cooler at the edges — and a large batch of soup scorches where the heat concentrates. Bonray’s stockpots use a tri-ply composite bottom: a magnetic stainless steel base, an aluminum core, and a stainless steel base plate, bonded together so heat spreads sideways across the whole bottom instead of staying in one spot.
| Layer | Material | Thickness |
|---|---|---|
| Bottom (hob side) | Stainless steel #430 — magnetic, so the pot works on induction | 0.7 mm (Φ250–300 mm); 0.9 mm (Φ320–500 mm); 1.0 mm (Φ550–600 mm) |
| Core | Aluminum — spreads heat sideways across the bottom | 2.5 mm (Φ250–500 mm); 3.5 mm (Φ550–600 mm) |
| Base plate | Stainless steel #430 | Fixed 0.7 mm |
| Total composite bottom | 3.9 mm (small sizes); 4.1 mm (mid sizes); 5.2 mm (large sizes) |
The body is stainless steel 201 or 304, 0.7 mm (Φ250–300 mm), 0.9 mm (Φ320–500 mm) or 1.0 mm (Φ550–600 mm); the lid is stainless steel #201. Because the bottom layer is magnetic #430, the pot works on gas, electric, ceramic and induction cooktops. The aluminum core is bonded to the steel by high-frequency brazing. Our guide Fully Clad vs Encapsulated Bottom Cookware explains the difference between a composite bottom like this one and a fully clad body, and when each one is the right choice.
Stainless steel stockpots for bulk orders

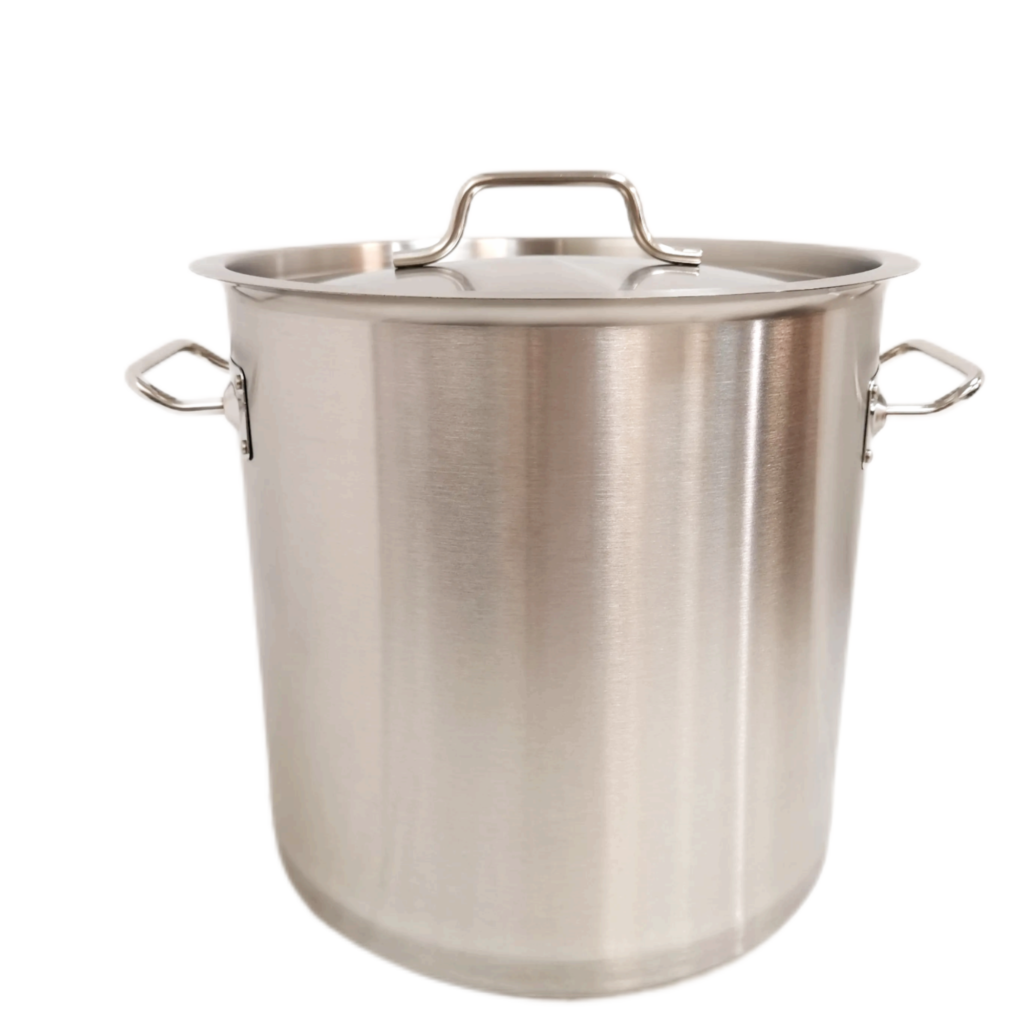

8-Quart Stainless Steel Stockpot with Wide Edge
- Durable stainless steel construction for corrosion resistance and a long-lasting finish.
- Premium 3-layered composite bottom for even heat distribution; multi-cooktop compatibility — induction, gas, electric and ceramic.
- Ergonomic, heat-resistant handles and a tight-fitting lid to lock in moisture and flavour; custom sizes, finishes and materials (SS304, SS201) available; logos by laser engraving, etching or embossing.

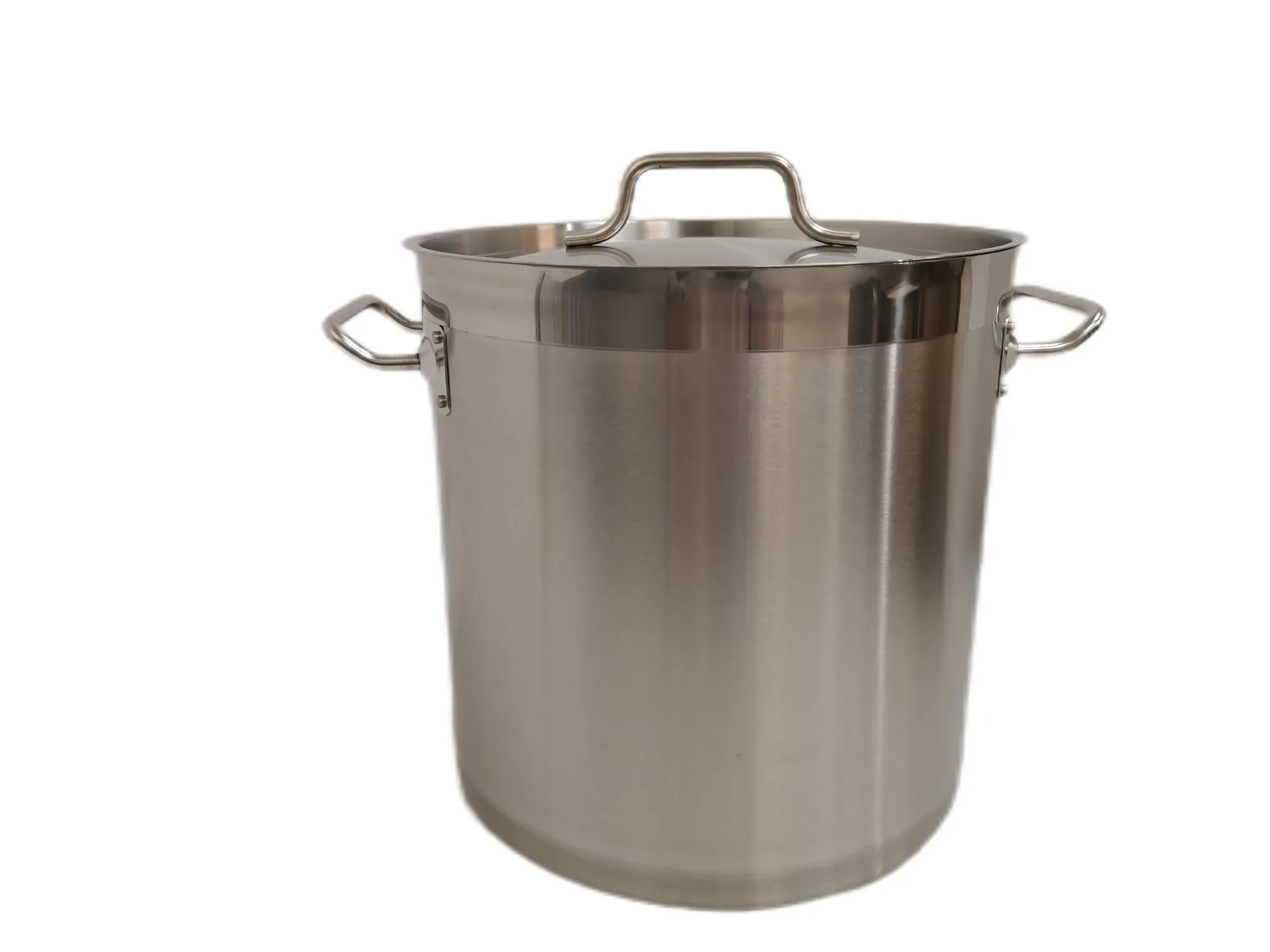

12-Quart Composite Bottom Stockpot with Reinforced Steel Ring
- Reinforced steel ring for extra strength, so the straight body keeps its shape under high heat and heavy loads.
- Straight body design maximises cooking capacity for soups, stews, broths and bulk cooking.
- Riveted stainless steel handles, tight-fitting lid, multi-ply composite bottom for gas, electric, induction and commercial stovetops; tailor designs, dimensions and surface finishes; SS304, SS201 and other materials.
16-Quart Commercial-Grade Stainless Steel Stockpot
- 16-quart capacity for bulk cooking in commercial kitchens.
- Reinforced steel ring to prevent warping; heavy-duty stainless steel; riveted handles; tight-fitting lid; 3-layered sandwich bottom, multi-cooktop compatible.
- Custom sizes, surface treatments and material choices offered; logo by laser engraving, etching or other methods.

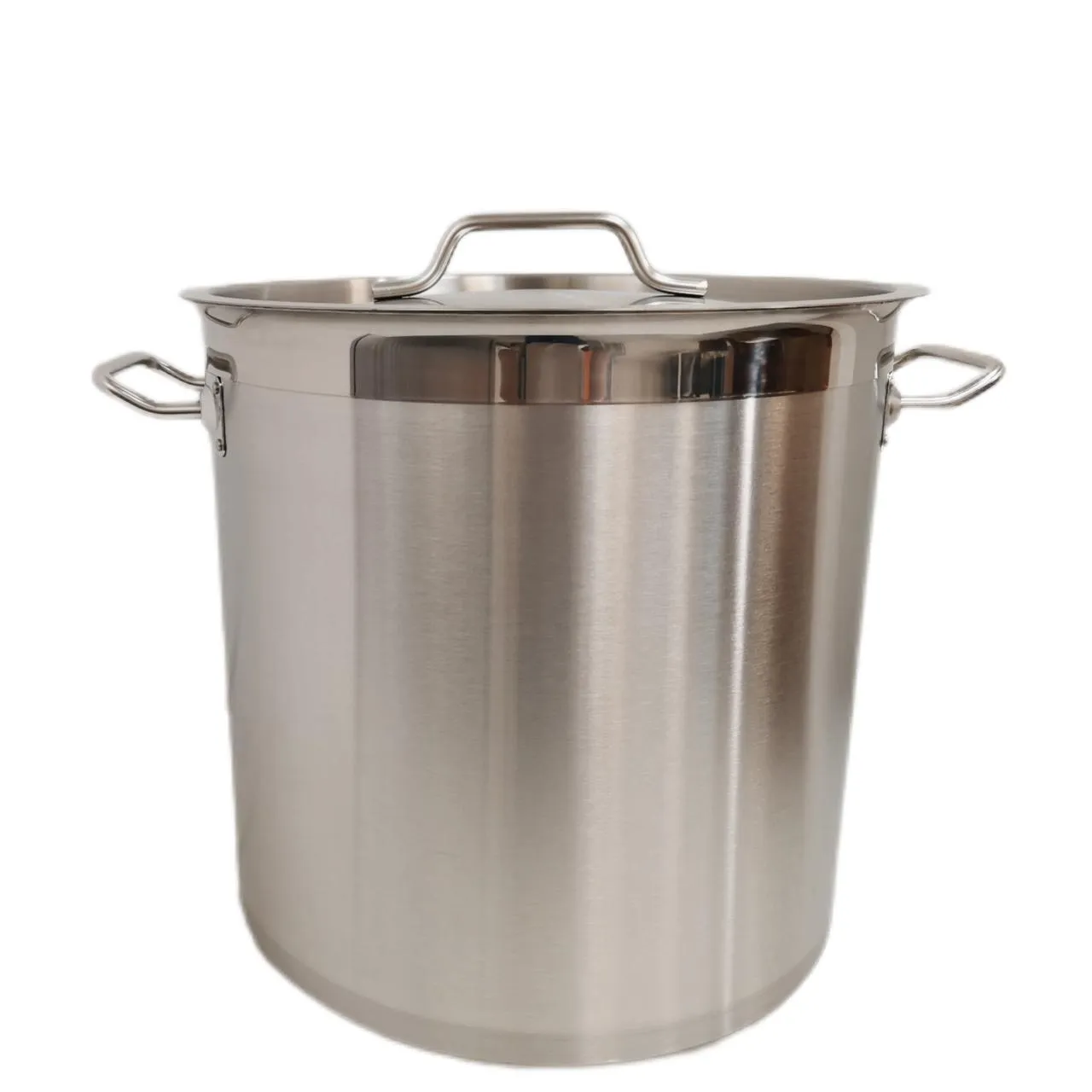

20-Quart Stainless Steel Stockpot of Encapsulated Bottom with Flared Rim
- Outward-rolled flared rim strengthens the pot’s structure, prevents deformation under heavy loads, and makes pouring smoother with fewer drips.
- Reinforced steel ring, heavy-duty food-grade stainless steel, secure riveted handles, tight-fitting lid included; the bonded bottom is stainless steel encapsulating an aluminum core for even heating; compatible with gas, electric and induction cooktops.
- Fully customisable designs, sizes, finishes and materials; logo by laser engraving, etching and more.
Composite-bottom stockpots: three models, one construction
The composite-bottom series comes in three models — 03, 04 and 05 — all built on the same tri-ply bottom in the tri-ply composite bottom section above: body 201 or 304, lid #201, bottom and base plate #430, aluminum core 2.5 or 3.5 mm. The documented difference between the models is the rim ring on models 04 and 05: 30 mm high for diameters 25–30 cm, 40 mm for 32–40 cm, and 50 mm for 45–60 cm. The ring strengthens the rim and gives the pot its finished edge.
Handle wire follows the diameter: 8 mm wire for diameters 25–30 cm, 10 mm wire above 30 cm. Riveted stainless steel wire handles are standard; ergonomic designs are available. If you need the page to explain the 03 / 04 / 05 models in more detail, ask us — the differences beyond the rim ring are not in the specification sheet.
Customization: logo, materials, lids, handles, packaging
Logo. Stamping for bold, permanent designs; laser engraving for clean, precise marking; electrochemical etching for durable, professional-looking logos; embossing for a raised finish. Your brand, on the pot or the lid, to your artwork.
Materials. Stainless steel 304 for premium lines — excellent corrosion resistance; stainless steel 201 as the economical alternative with solid durability for budget-conscious markets. Body thickness follows the diameter (0.7 / 0.9 / 1.0 mm, see the tables above) and can be adjusted to your performance goals.
Lids. Stainless steel lids in #201, matched to the body diameter; lid thickness 0.7 mm (Φ250–300 mm) or 0.9 mm (Φ320–600 mm). Tight-fitting, to retain heat, moisture and flavour.
Handles. Riveted stainless steel wire handles for maximum stability and long-term durability — 8 mm wire for diameters 25–30 cm, 10 mm wire above 30 cm. Ergonomic designs for improved grip and comfort in busy kitchens.
Packaging. Standard packing: lid and body in separate plastic bags, one pot per plain brown carton. Retail-ready boxes, branded gift sets and bulk protective packaging available on request, with logo printing, product descriptions and care instructions.
How to choose a stockpot
- Size. Match the batch: retail quarts 8–20 qt; commercial metric diameters Φ250–Φ600 mm, 12–226 L; a shallow version is available.
- Base. Tri-ply composite bottom for even heat on all cooktops, including induction. Choose fully clad if you need heat up the sides.
- Material. Stainless steel 304 for premium lines and corrosion resistance; 201 for budget-conscious markets.
- Handles & lids. Riveted wire handles — 8 mm for diameters Φ25–30 cm, 10 mm above 30 cm — and a stainless steel lid #201.
- Packaging. Standard plain brown carton, lid and body bagged separately; retail-ready boxes on request.
Quality & documents

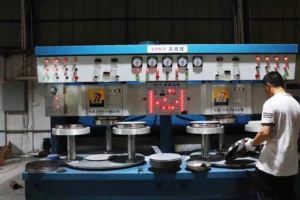

Every order is inspected before packing — material inspection, weld testing and polishing checks — and shipped with the material certificate and food-contact evidence for your market. The Cookware Certification Checklist explains which documents to ask for and how to check them.
How to specify an order
Use this checklist in your RFQ. A factory that answers all seven, with documents, is a factory you can buy from.
- Size. Which diameters and heights, and how many of each? Use the tables above — quarts for retail lines, metric diameters for commercial lines.
- Construction. Tri-ply composite bottom (430 + aluminum core + 430) is standard; confirm the bottom thickness for your sizes.
- Material. SS304 or SS201 for the body?
- Handles and lids. Riveted wire handles (8 or 10 mm by diameter); stainless steel lid.
- Logo and packaging. Stamping, laser engraving, etching or embossing; standard plain carton or retail-ready packaging?
- Documents. Material certificate for the grade and thickness, and the food-contact evidence for your market — see the Cookware Certification Checklist.
- Quantity, market and timeline. Bonray's standard MOQ is typically 500 pieces per product, and lead time is 4–6 weeks. Regular samples are ready within 5 days; custom samples need mould development, typically 25–35 days. Confirm all three in writing.
What affects the unit price. Size, material grade and thickness, handle and lid specification, logo method, packaging, and quantity. No guide can quote a price without a specification — send the seven items above and we will quote it.
Ordering with Bonray — samples, lead time, documents
Step 1 — Send your spec. Size, construction, material, handle and lid, logo and packaging, quantity, target market and timeline. With those items, a factory can give you a straight answer instead of three rounds of back-and-forth.
Step 2 — Samples. Regular samples are ready within 5 days. Custom samples need mould development, typically 25–35 days.
Step 3 — Production and inspection. Lead time is 4–6 weeks. Every order is inspected before packing — material inspection, weld testing and polishing checks — ask for the material certificate for the grade and thickness with your order, and the food-contact evidence that matches your market. Our Cookware Certification Checklist explains which documents to ask for and how to check them.
Client Success Story: Delivering Custom Stainless Steel Stockpots Tailored for Efficiency and Branding
Meeting Custom Requirements with Practical Solutions
A leading kitchenware distributor approached Bonray with a request for customized stainless steel stockpots that balanced functionality, cost-efficiency, and brand visibility. With extensive experience in cookware manufacturing, our team worked closely with the client to deliver a tailored solution that met their specifications and budget.
Client's Requirements
The client needed stainless steel stockpots in two specific sizes:
- 50 × 25 cm — Ideal for medium-batch cooking.
- 50 × 40 cm — Designed for large-volume food preparation.
To ensure durability and secure handling, the client requested riveted stainless steel wire handles, providing strength and stability for heavy-duty use.
Additionally, the client aimed to enhance product appeal without exceeding their budget. They requested a polished rim on the stockpot’s opening for a refined look but chose to forgo a full stainless steel bright band to reduce costs. To improve brand recognition, they opted for colorful hang tags instead of expensive full-color packaging and selected white boxes to keep packaging costs minimal.
Our Solution
Bonray’s production team developed a customized solution that combined:
- ✅ Precise Dimensions: Custom molds were created to manufacture stockpots in 50 × 25 cm and 50 × 40 cm sizes, ensuring accuracy and consistency.
- ✅ Riveted Stainless Steel Wire Handles: Designed for strength and easy handling in professional kitchens.
- ✅ Polished Rim Finish: A cost-effective solution that enhanced the product’s appearance while avoiding the added expense of a full bright band.
- ✅ Colorful Hang Tags: Vibrant tags were added to reinforce the client’s branding in retail displays.
- ✅ White Box Packaging: An economical packaging choice that reduced costs without compromising protection.
Results That Delivered Value
By combining smart design choices with cost-effective production methods, Bonray successfully met the client’s requirements. The customized stockpots were delivered on time and became a popular product in the client’s cookware lineup.
- ✅ The polished rim added a touch of elegance at a lower cost.
- ✅ The use of colorful hang tags improved brand visibility in stores.
- ✅ The switch to white box packaging reduced expenses without sacrificing presentation quality.
This tailored approach allowed the client to maintain competitive pricing while offering a durable, attractive product that met market demand.
Both sizes were made to the client’s specification — custom sizes are available on request (see the sizes section above).
Frequently asked questions
The retail range runs 8, 12, 16 and 20 qt (7.6–18.9 L), and the commercial composite-bottom range runs Φ250×H250 mm (12.27 L) to Φ600×H800 mm (226.08 L) in 14 sizes, plus a shallow-pot version from Φ250×H100 mm (4.91 L) to Φ600×H400 mm (113.04 L). Custom sizes are available on request.
It is three layers bonded together: a magnetic #430 stainless steel bottom, an aluminum core, and a #430 base plate — 3.9 to 5.2 mm total depending on size. The aluminum core spreads heat sideways across the bottom, so a large batch heats evenly instead of scorching in the middle. The #430 layers make the pot induction-compatible.
Yes. The composite bottom’s #430 stainless steel layers are magnetic, so the pots work on induction as well as gas, electric and ceramic cooktops.
Bonray’s standard MOQ is typically 500 pieces per product, and lead time is 4–6 weeks. Regular samples are ready within 5 days; custom samples need mould development, typically 25–35 days.
Yes — stamping, laser engraving, electrochemical etching or embossing, on the pot or the lid. Name the logo method and the packaging in your RFQ.
About Bonray
Bonray has made OEM stainless steel cookware in China since 2014 — twelve years, and more than 100 brands served. We make stainless steel cookware to customer drawings, including stockpots from 8 qt to 226 L with tri-ply composite bottoms, custom sizes, materials and logos. Our standard MOQ is 500 pieces per product, lead time is 4–6 weeks, regular samples are ready within 5 days, and custom samples need a mould, typically 25–35 days. If you are lining up a stockpot for your range, send us the size, construction, material, handle, logo, quantity, market and timeline — we will tell you honestly whether it is a fit.
